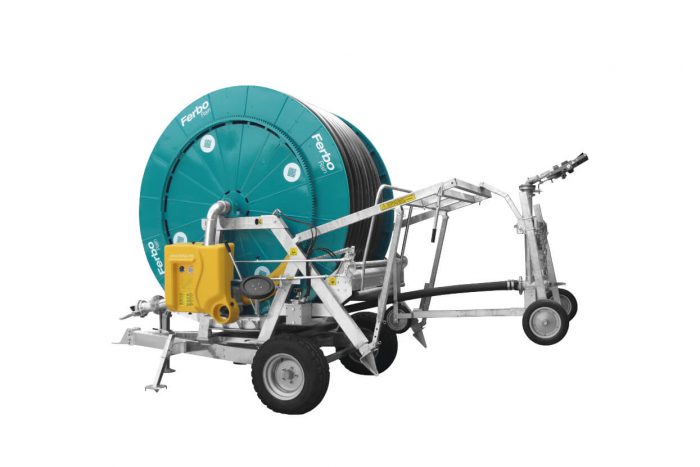

GD SERIES
MOBILE IRRIGATORS 360° TURNTABLE EQUIPPED WITH:
– Galvanized frame and painted reel
– Mechanical parts painted with RAL 5021
– Flanged turbine on the gearbox, speed control and compensator
– Gearbox 4 speeds with automatic drive disengagement, device for rewinding through PTO and rewinding out of the drum
– Leadscrew hose layering device
– 3 wheels sprinkler trolley with adjustable track
– Hydraulic lift operations through manual pump for trolley lift and staker leg Drawbar with connection adjustable in height, mechanical jack and lateral staker legs
– Drum rotation that can be operated from trolley lifting device through release lever
– Sectoring sprinkler with set of nozzles
– Supply hose 4 mt. with female ball joint on line side
– Double water inlet
– Instructions and maintenance handbook
– Guarantee coupon
GD SERIES
| CODICE | DIAMETRO TUBO | LUNGHEZZA TUBO | IRRIGATORE |
|---|---|---|---|
| 90/380 | mm 90 | mt 380 | Reflex / TWIN 140 |
| 90/400 | mm 90 | mt 400 | Reflex / TWIN 140 |
| 90/420 | mm 90 | mt 420 | Reflex / TWIN 140 |
| 90/440 | mm 90 | mt 440 | Reflex / TWIN 140 |
| 90/480 | mm 90 | mt 480 | Reflex / TWIN 140 |
| 100/320 | mm 100 | mt 320 | Reflex / TWIN 140 |
| 100/350 | mm 100 | mt 350 | Reflex / TWIN 140 |
| 100/400 | mm 100 | mt 400 | Reflex / TWIN 140 |
| 100/450 | mm 100 | mt 450 | Reflex / TWIN 140 |
| 110/270 | mm 110 | mt 270 | Reflex / TWIN 160 |
| 110/300 | mm 110 | mt 300 | Reflex / TWIN 160 |
| 110/340 | mm 110 | mt 340 | Reflex / TWIN 160 |
| 120/230 | mm 120 | mt 230 | Explorer / TWIN 202 |
| 120/270 | mm 120 | mt 270 | Explorer / TWIN 202 |
| 125/220 | mm 125 | mt 220 | Explorer / TWIN 202 |
